Washing Fastness Tester

Washing Fastness Tester
Washing Fastness Tester
Product Code : VI-01
Brand Name : VGOTECH INDIA
Price And Quantity
  • Unit of Measure
  • Piece/Pieces
Product Description

We are actively engaged in offering a quality assured range of Washing Fastness Tester. Perfect for checking the color fastness of fabrics against washing, our offered fastness tester is provided in various specifications as per customer requirements. This fastness tester is developed using top notch material & contemporary techniques as per the norms of industry. Our Washing Fastness Tester is used while the inspection of color fastness against dry cleaning and bleaching.



Features

  • Machine meets international standard specifications
  • Least maintenance
  • Hassle free performance
  • All wash fastness tests indicated in ISO, BS and AATCC specifications can be carried out efficiently



Washing Fastness Tester

VGOTECH WASHING FASTNESS TESTER (Launderometer) is used to wash the fabric sample for various tests for determining color Fastness.

  • Fully SS Structure comprising of rotor moving at 40 rpm in water tank
  • Heating load-2 x 1.5 KW or 3 x 2.0kw
  • Drive-1/4 HP 40rpm Geared motor coupled with rotor shaft
  • Beakers made from SS 316 ERW Pipe of 3mm thickness Rotor tank, top & frame made from SS 304.
  • Digital TIC & Timer in Panel for controlling heating cycle.
  • Safety Provision Limit switch stops the machine as soon as the top lid is lifted.

STANDARD MODELS:

a) 8 x 550ml

b) 4 x 1200ml + 4 x 550ml

c) 8 x 1200ml + 8 x 550ml

The Washing Fastness Tester is used for determining colour fastness of textile materials to washings. This is attained by mechanically agitating a specimen of textile in contact with pieces of specified adjacent fabrics in a soap  soda solution. Before being rinsing and dried. The change in colour of specimen and stains of the adjacent fabrics are assessed with standard Grey Scale.

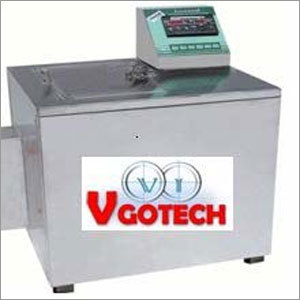

The WASHING FASTNESS TESTER consists of a thermostatically controlled, electrically heated water bath made of Stainless Steel. The bath is heated by means of immersion heaters and its temperature controlled by a capillary type thermostat. The temperature of water inside the bath is displayed on a digital temperature indicator. The bath has a double walled hinged lid made of stainless steel sheets.

The jars in which the test solution and the test specimens are kept during the test are made from stainless steel and are provided with rubber scales for water tight closing. They are held in a cast aluminium rotor assembly mounted on a stainless steel shaft at the center of the bath and rotating about a horizontal axis with the help of a geared Motor. A clockwork timer is provided to stop the motor after a pre-determined time. The apparatus is fabricated on a sturdy angle iron frame and is completely enclosed on all four sides with mild steel sheet duly enameled in metallic green paint. The top of the apparatus is covered with stainless steel sheet.

One hundred stainless steel balls of 6 mm diameter are supplied with the apparatus as standard accessory for providing beating action during the washing operation. Extra stainless steel balls and standard Grey Scales are available as optional accessory.

Technical Specifications

Number of Jars

16jars

Volume of each Jar

550ml (Approx)

Distance of base jars from the axis of rotation

50 mm

Speed of rotation

40 to 45 rpm.

Temperature of Water

Ambient of 98oC

Motor

1/4 HP 230 V AC.

RELATED STANDARDS

IS 687  1979, 764 - 1979, 765, 1979, 3417, 179, 3361, Method of determination of Colour fastness of textile materials to washing : Test1, Test2, Test 3, Test 4 and Test 5 respectively.
