Lab Dyeing Testing Machine

Lab Dyeing Testing Machine
Lab Dyeing Testing Machine
Product Code : VI-20
Price And Quantity
  • Unit of Measure
  • Piece/Pieces
Product Description
Our organization has gained recognition as the affluent manufacturer, exporter and supplier of a high quality range of Lab Dyeing Testing Machine. In accordance to international standards, this testing machine is manufactured using premium grade raw material and latest technology,. Along with that, our offered Lab Dyeing Testing Machine is used for dyeing sample of fabric and yarn at high temperature and high pressure. Our valuable customers can avail this testing machine from us at industry leading price.


  • Easy to operate
  • Longer service life
  • Rugged design
  • Accurate result

Specification :

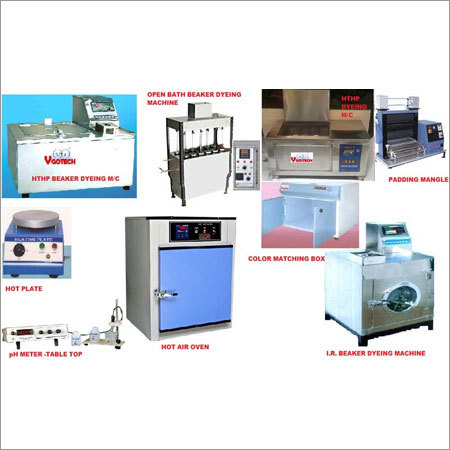

IR Beaker dyeing machine

  • Works on the principle of infra red heating. Suitable for high rate of rise in temperature.
  • Capacities:- 12 x 250ml, 16/18 x 250ml, also in 500ml, 1000ml. Equipped with microprocessor based temperature programmer & membrane key pad, Air cooling.
  • Optional:- Variable speed drive

HTHP Beaker dyeing machine

  • Double wall SS Structure with Glycerin Bath. Capacities: 12 x 250ml, 16/18 x 250ml. also in 500ml, 1000ml. SS 316 jars. Heating - 3x 2.5kw. Microprocessor based temp. programmer & membrane key pad. Water cooling through copper coil.
  • Optional: Variable speed drive

Rota Dyer

  • Suitable for cotton dyeing. Double wall structure.
  • Capacities:- 12 x 250ml, 16/18 x 250ml. also in 500ml, 1000ml. heating -3 x 2.0kw, digital TIC cum Timer.

Open bath beaker dyeing

  • Suitable for below 98oC dyeing.
  • Capacities:-12 x 250ml, 16/18 x 250ml or 500ml.
  • Heating-3x1.5kw, up/down & also to & fro movement of rods.
  • Water circulation pump for uniform temp. in bath.

Water bath

  • Fully SS structure, capacity: 6 x 500ml, 12 x 500ml. with digital TIC. Jars of SS 316.

Hot Air Oven

  • Upto 200°C. standard Size: 18" x 18" x 18". With digital TIC & Air circulation fan. 2nos jail type trays. Heater -Tubular finner air heaters of 2kw. Indigenous table top type models-Auto temperature compensation -supplied with.

Colour Matching Cabinet

  • Available in ECO/Standard/Premium Model in 2ft & 4ft sizes. Metal body, light sources:-
  • D-65, TL-84, CWF, TL-83, UV, U-30, U-35, Illuminant A, Filament Bulb.

Water Bath Shaker,

  • Capacity -12 x 250ml with speed regulator

Lab Shaker

  • Capacity-9 , 16 flasks of 250ml, with Timer & RPM indicator

Hot Plate

  • 1000w, Dia-8"

Shade Card Winding machine

  • Tailor made equipment as per size of card/no of strips/width & spacing of strips.

Padding Mangle.

  • Roll Size 120mm X 300 Mm: For Cool Padding
  • Minimum time is required for padding sample
  • At trough is provided below the bowls to collect liquor after padding.
  • Machine Type: Laboratory Vertical Padding Mangle.
  • Maximum Working Width: 300mm.
  • Roll Size: Diameter 120mm X 300mm
  • Electrical Supply: Single Phase 230 Volts, 50 HZ.
  • Motor: 1/4 HP,, DC Geared Motor.(With Reverse & Forward System)
  • Shore Hardness: @60-65.
  • Roller Coating: Rubber roll 1 Piece & Ebonite roll 1 Piece.
  • Speed of Rolls:-Variable Speed.

B.O.D. Incubator

  • Capacity 18" x 18" x 24"
  • Double Wall Structure with insulation to prevent thermal losses.
  • Inside Chamber of SS 304 & outer body of MS - Powder Coated.
  • Temperature Range - 5 to 50oC + 2oC
  • Compressor - Emerson make. Full view inner glass door with lock & key arrangement.
  • Air Circulating fan for Uniform heating.
